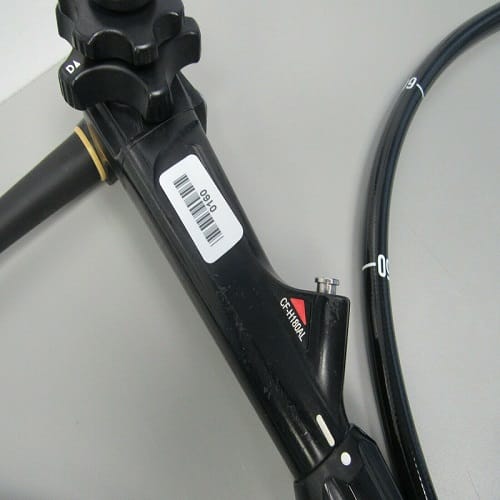

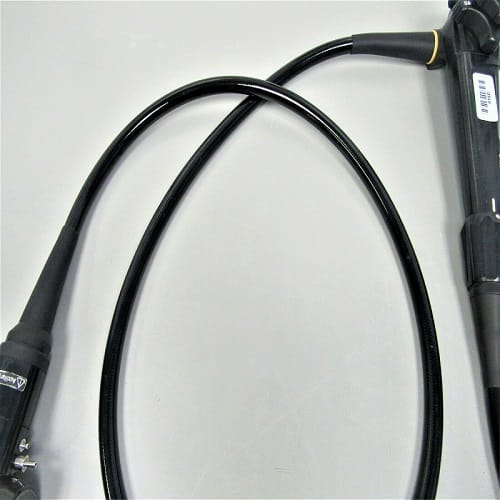

Olympus CF-H180AL EVIS EXERA

Olympus CF-H180AL EVIS EXERA

• Enhance visualization: Narrow Band Imaging (NBI) combined with HDTV and Close Focus enhances observation of the mucosa. The extra-wide 170° field of view enables comprehensive observation of the colon and may facilitate a reduction in miss rates, shorter examination times, and enhanced procedural efficiency.
• Easy mucosal cleaning for better observation: An auxiliary water function can be combined with a dedicated flushing pump to enable removal of mucus and clots in the colon at the touch of a switch on the scope or on the footswitch unit.
• Improved handling: The Olympus CF-H180AL EVIS EXERA II Colonoscope features innoflex  Variable Stiffness technology, enabling adjustment of the insertion tube flexibility to match the conditions and contours of the colon.

The Olympus CF-H180AL EVIS EXERA II Colonoscope is HDTV-compatible, delivering the highest-possible resolution and image quality. It comes equipped with an impressive suite of advanced functions, including Narrow Band Imaging (NBI) to enhance visualization of mucosal tissue and capillary structures.

A close focus function produces the same effect as electronic magnification simply by bringing the scope tip close to the observation area. A generous 3.7 mm diameter channel (12.8 mm diameter insertion tube) accommodates a wide range of endoscopic devices while maintaining suction capability.

Olympus CF-H180AL EVIS EXERA Features :

Auxiliary WaterChannelInstrumentChannel OutletObjectiveLensAir/WaterNozzleLight-guideLensUp 180Down 180Right 160Left 160°°°°Start-up display
• Narrow Band Imaging combined with high-resolution HDTV imaging and Close Focus enhance observation of the mucosa and capillaries.
• Close Focus for detailed observation without electronic magnification.
• Exclusive 170° field of view enables comprehensive observation of the colon and may facilitate scope maneuvering for shorter examination times and enhanced efficiency.
• Generous 3.7 mm diameter channel accommodates a wide range of endotherapy accessories while maintaining sufficient suction capability.
• Auxiliary water jet removes mucus and debris inside the colon at the press of a button on the scope or the footswitch unit, providing a clear view.
• Highly acclaimed Variable Stiffness capability for adjustment of insertion tube flexibility to match the conditions and contours of the colon.
• Insertion tube measuring 12.8 mm across with distal end diameter of 13.9 mm.
• Wide-ranging four-way angulation (180° up/down and 160°right/left)
• Ergonomically designed grip enhances scope maneuverability while easy-to-access knobs and user-selectable switches improve operability.
• Compatible with the CV-180
• Scope ID function stores individual scope information in the built-in memory chip and displays it on the monitor, facilitating endoscopy suite management and making the scope ready for next-generation system expansion

Olympus CF-H180AL EVIS EXERA Specifications :

Channel Width: 3.7
Working Length: L: 1680, I: 1330
Field of View: 170
Depth of Field: 2-100
Outer Diameter Insertion Tube: 12.8
Max Angulation Up: 180
Max Angulation Down: 180
Max Angulation Right: 160
Max Angulation Left: 160
